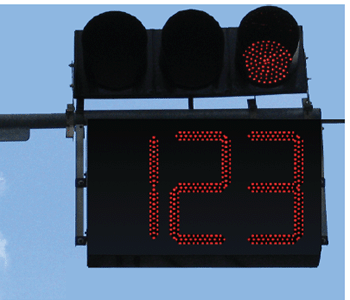

Traffic Light Countdown Display
Model TCS-xxxRG (Red, green and amber color)
Traffic Countdown Display brochure : download (1.91MB)
Desciptions Model TCS-350-2RG TCS-350-2h3RG TCS-350-3RG TCD-500-2RG TCS-500-3RG
Overall dimension 600mm(W) x500mm(H) x100mm(D) 700mm(W) x 500mm(H) x
850mm(W) x 500mm(H) x 100mm(D) 840mm(W) x 700mm(H) x 150mm(D) 1200mm(W) x 700mm(H) x 150mm(D)
Weight 18kg 21kg 22.5kg 35.5kg 50kg
No. Display digits 2 2 ½ 3 2 3
Display type Outdoor tri-color LED timer display
Display capability Countdown timer for traffic red and green light
Character size Height: 350mm Height: 350mm Height: 350mm Height: 500mm Height: 500mm
Max viewing distance 175m 175m 175m 250m 250m
Digit formation 7-segment
Display elements Ultrabright red and blue-green color LEDs
Display wavelength Red = 630nm, Blue - green = 505 nm
Display colours Red, Green and Amber
Luminance 6000 cd/m²
Viewable angle 23°
Intensity control -
Operate temperature 0° - 70°C
Life span per pixel 100, 000 hours (LED manufacturer estimate)

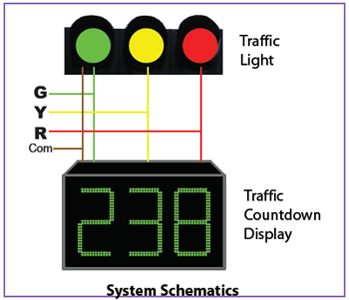

Display control Red, green & yellow direct mains 230Vac from the traffic light controller
Power consumption 27 watts (peak) 33 watts (peak) 40 watts (peak) 45 watts (peak) 66 watts (peak)
Input power 230Vac, 1A
Chassis design Welded mid steel chasis with front: IP65, rear IP55
Ventilation 100mm exhaust fan
Chassis finish Matt black UV-resist powder coating
Mounting Bracket for vertical and horizontal bar mounting
